Panzerkampfwagen II Tank



Powered By Subgurim(http://googlemaps.subgurim.net).Google Maps ASP.NET

MAP CONTROLS: Use slider or mousewheel to zoom, and hold down left mouse button to drag.
KEY: Location markers are coloured from Green meaning exact to Red meaning gone or unknown (details here)

In July 1934 the Heereswaffenamt issued an initial order for a tank design in the 10-ton class, intending it to be a stop-gap pending the arrival of the heavier designs which were to become the PzKpfw III and IV. Prototypes were submitted by MAN, Henschel and Krupp. The MAN version was accepted for production in 1935, with Daimler-Benz chosen to do the final development of the superstructure.
The PzKpfw II was first issued to Panzer units in the spring of 1936 and took part in the campaigns in Spain and Poland. Production continued until 1942 but during the campaign in the West it was relegated to a reconnaissance role. It was phased out of service with tank regiments in 1943 though it remained in service on secondary fronts until the end of the war. None of the pre-production models of the PzKpfw II still survive; these were the Ausf a1, a2, a3, b and c.

Ausf A, B and C

The Ausf A entered production in 1937 and was fitted with an improved HL62TRM engine and SSG46 gearbox as well as a new driver’s visor with narrower vision slit. The Ausf B was externally identical and became the most numerous production variant. The Ausf C appeared in 1938/9 and had modified engine cooling and thicker glass vision blocks.
Combat experience showed up deficiencies in the these early models, particularly insufficient armour protection and a lack of vision devices for the commander. Therefore, from 1939, Ausf A, B and C vehicles were gradually modified by the addition of armour plates on the superstructure and nose, making the nose squared-off instead of rounded. They were also later fitted with a new commander’s cupola with eight episcopes.

Model Id:130
Manufacture:Maschinenfabrik Augsburg-Nürnberg (MAN) AG, Nürnberg, Bavaria, Middle Franconia, Germany (PzKpfw II A-C prime contractor 1935-1939)
Daimler-Benz AG, Marienfelde, Berlin, Germany (Secondary PzKpfw IIC manufacturer)
Fahrzeug- und Motoren-Werke (FAMO) GmbH, Stare Miasto, Wrocław, Dolnośląskie, Poland (Additional PzKpfw IIC manufacturer)
Wegmann & Co, Kassel, Nordhessen, Germany (Additional PzKpfw IIC manufacturer)
Mühlenbau-Industrie AG (MIAG), Braunschweig, Lower Saxony, Germany (Additional PzKpfw IIC manufacturer)

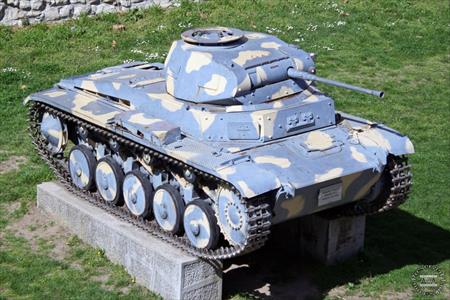

1) National Museum of Military History, Kalemegdan Fortess, Serbia

Number of Photos: 3
Sample Photo from Album Number 18

Click here or on the image for this tank's profile page

Unique ID: 18
Serial Number:
Registration:
Name:
Other Identification:

This is an Ausf B.

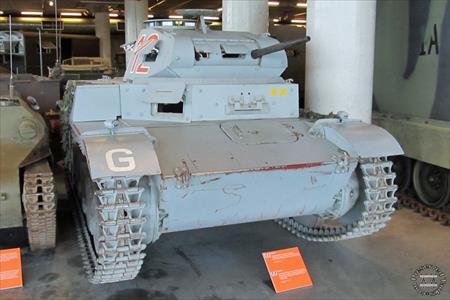

2) Canadian War Museum, LeBreton Flats, Canada

Number of Photos: 8
Sample Photo from Album Number 19

Click here or on the image for this tank's profile page

Unique ID: 19
Serial Number:
Registration:
Name:
Other Identification: “112” painted on turret sides. German crosses painted on hull sides.

Text in original Preserved German Tanks publication:

This PzKpfw II is currently in storage at Vimy House.

Text in Preserved German Tanks Update:

This PzKpfw II was transferred from Vimy House when the current museum was opened.

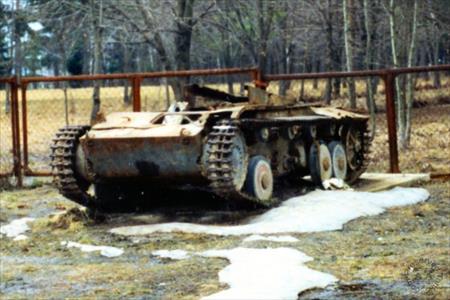

3) Snegiri Museum of Military History, Lenino, Russia

Number of Photos: 1
Sample Photo from Album Number 20

Click here or on the image for this tank's profile page

Unique ID: 20
Serial Number:
Registration:
Name:
Other Identification:

This is an Ausf C. It is in a very poor and rusted condition, and is missing its turret and most of its superstructure, having been dredged from a lake.

Ausf D and E

During 1938 Daimler-Benz produced two more versions of the PzKpfw II, the Ausf D and E. These were fitted with torsion bar suspension that gave a much higher top speed on roads. They were known as Schnellkampfwagen and 250 were produced. Some were later converted to the flame-thrower role and were known as PzKpfw II (Fl), SdKfz 122.

Ausf F

This was the final production model of the basic PzKpfw II series. It had a new hull and superstructure with increased armour protection and a dummy driver’s visor on the front plate. The suspension was the same as that used on the Ausf A, B and C apart from new conical idler wheels. Forty-five were planned to be produced each month but this target was rarely achieved. In total 625 examples of the Ausf F were produced and saw service in the Middle East, North Africa and the Soviet Union.
Ausf G, H and M were experimental versions of the PzKpfw II, none of which entered production.

Model Id:134
Manufacture:Maschinenfabrik Augsburg-Nürnberg (MAN) AG, Nürnberg, Bavaria, Middle Franconia, Germany (Prime contractor 1940-1942)
Daimler-Benz AG, Marienfelde, Berlin, Germany (Secondary manufacturer)
Fahrzeug- und Motoren-Werke (FAMO) GmbH, Stare Miasto, Wrocław, Dolnośląskie, Poland (Additional manufacturer)
Wegmann & Co, Kassel, Nordhessen, Germany (Additional manufacturer until 1941)
Mühlenbau-Industrie AG (MIAG), Braunschweig, Lower Saxony, Germany (Additional manufacturer until 1940)

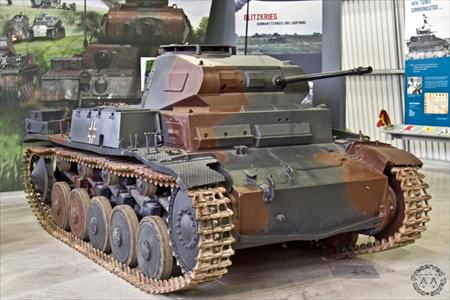

4) The Tank Museum - Public Areas, Bovington, Britain

Number of Photos: 10
Sample Photo from Album Number 89

Click here or on the image for this tank's profile page

Unique ID: 89
Serial Number: 28434: chassis number.
Registration:
Name:
Other Identification: German crosses painted on hull side stowage boxes and hull rear. Painted overall in a grey and brown camouflage scheme (previously overall green).

Text in original Preserved German Tanks publication:

This Ausf F, chassis number 28434, was captured in Tunisia during the War from the Regimental Headquarters Company of Panzer Regiment 7. It was at the School of Tank Technology, Chobham Lane, Chertsey, before being moved to Bovington. It has a British 15mm BESA substituted in place of its original armament. It now carries the turret number “312”. It previously had the turret number “III 14”; prior to that it had the markings “R” on the turret, “45” on the superstructure side and “F57” on the hull front.

Text in Preserved German Tanks Update:

This PzKpfw II was manufactured by FAMO in May 1942. British forces captured it in May 1943. It was put on the museum books in 1951. It is currently displayed in the markings of the 1st Panzer Division at the time of the German invasion of France in May 1940.

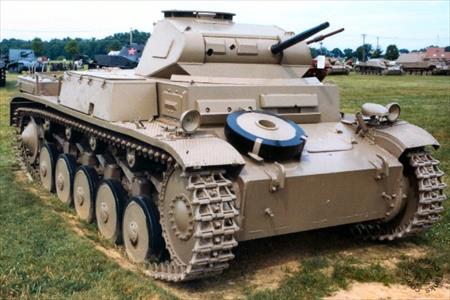

5) National Armor and Cavalry Museum, Fort Benning, USA

Number of Photos: 6
Sample Photo from Album Number 90

Click here or on the image for this tank's profile page

Unique ID: 90
Serial Number:
Registration:
Name:
Other Identification:

Text in original Preserved German Tanks publication:

This vehicle was captured in Libya during World War II and was on display in the Ordnance Museum at the Aberdeen Proving Ground, Maryland, USA, for many years. In 1989 it was returned to West Germany on long term loan (99 years) in exchange for it being restored. The two other vehicles involved were a Tiger tank and Marder II tank destroyer, both of which went to the Auto und Technik Museum at Sinsheim. It is now in running order and has taken part in public displays.

Text in Preserved German Tanks Update:

This Panzer II went to the Wheatcroft Collection for some years, and was returned to the USA in 2012.

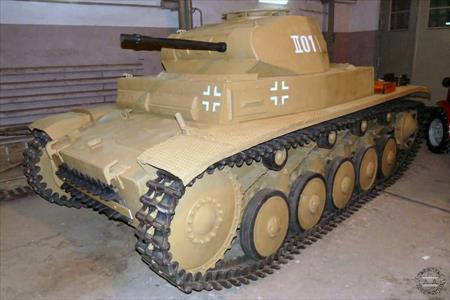

6) Kubinka NIIBT Research Collection - Foreign Vehicles, Kubinka, Russia

Number of Photos: 4
Sample Photo from Album Number 91

Click here or on the image for this tank's profile page

Unique ID: 91
Serial Number:
Registration:
Name:
Other Identification: Serial number “28384”. Number “II01” painted on turret sides.

Text in original Preserved German Tanks publication:

This Ausf F is unusual in not having a dummy driver’s visor fitted to the right side of the front plate. It is fitted with a Soviet headlamp and has metal tubing in place of its coaxial MG.

Text in Preserved German Tanks Update:

This Panzer II recently completed a long restoration, having been removed from display in November 2006 and returned on 17 February 2009. It was originally hoped to return it to running order but all internal equipment had been removed in the late 1940s-early 1950s. It had originally been rebuilt after Spring 1943, with its original Panzergrau colour removed and repainted to Dunkelgelb. Its current colour and markings are authentic; it had been a headquarters tank. (Source: Taranov).

Panzerspähwagen Luchs (Ausf L)

In 1938 Daimler-Benz was instructed to develop a faster version of the PzKpfw II for use in the reconnaissance role. The first prototype of this vehicle, the PzKpfw II neuer Art or VK1301, appeared in 1942. The chassis was again developed by MAN and the superstructure by Daimler-Benz. It differed greatly from the Ausf F in having an entirely new suspension system with five pairs of interleaved roadwheels each side, carried on torsion bars. It also lacked a turret cupola and vision ports. These were replaced by two periscopes in the turret roof.
The VK1301 went into production, with a number of small changes, as the VK1303. About one hundred vehicles were built. They were issued exclusively to armoured reconnaissance units and were redesignated as Panzerspähwagen Luchs (armoured reconnaissance vehicle Lynx). They saw service in the Soviet Union and France.

Model Id:136
Manufacture:Maschinenfabrik Augsburg-Nürnberg (MAN) AG, Nürnberg, Bavaria, Middle Franconia, Germany (Sole manufacturer September 1943-January 1944)

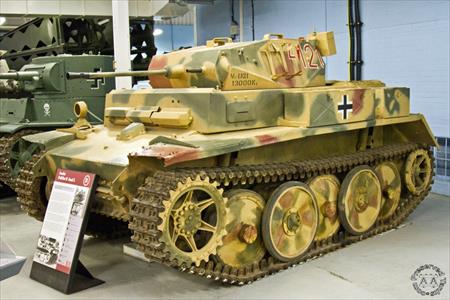

7) The Tank Museum - Public Areas, Bovington, Britain

Number of Photos: 17
Sample Photo from Album Number 92

Click here or on the image for this tank's profile page

Unique ID: 92
Serial Number: 200164.
Registration:
Name:
Other Identification: “4121” (previously “4114”) painted on turret sides. “VSC LKLI 13000Kg” painted on front left turret side. German crosses painted on side stowage boxes and hull rear. Painted overall in a green, sand and brown camouflage scheme (previously overall green).

This Luchs was captured by the British Army in north-west Europe.

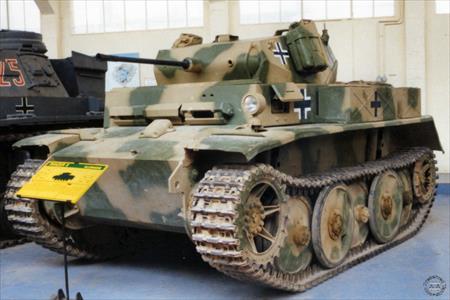

8) Museé Des Blindés, Saumur, France

Number of Photos: 2
Sample Photo from Album Number 93

Click here or on the image for this tank's profile page

Unique ID: 93
Serial Number:
Registration:
Name:
Other Identification:

This Ausf L was previously in a poor condition - it is believed to have been recovered from a scrap yard at Trun in Normandy. In the last few years it has undergone extensive restoration and it is now on display. It is in running order, and takes part in the museum’s vehicle displays.
